FGD Mining Sand Mud Slurry Pump
FGD Mining Sand Mud Slurry Pump
Pump Introduction

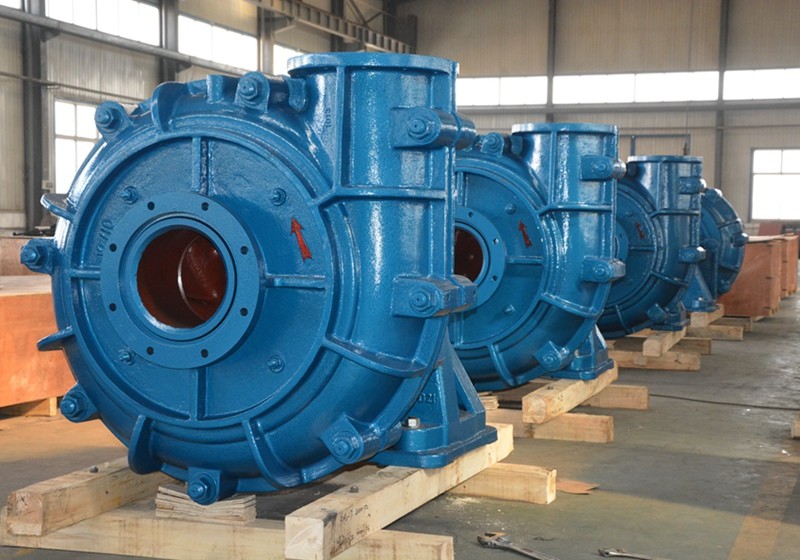

WA series of Mining Sand Mud Slurry Pump are cantilevered, horizontal, natural rubber or hard metal lined centrifugal slurry pumps.
They are designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industry department.
Typical Applications
SAG mill discharge, ball mill discharge, Rod mil discharge, Ni acid slurry, coarse sand, coarse tailings, phosphate matrix, minerals concentrate, heavy media, sugar beet, dredging, bottom/fly , lime grinding, oil sands, mineral sands, fine tailings, slag granulation, phosphoric acid, coal, flotation, process chemical, pulp and paper, FGD, cyclone feed, etc.
Features
The frame plate for WA series pumps has interchangeable hard metal or pressure moulded elastomer liners. The impellers are made of hard metal or pressure moulded elastomer liners.
The shaft seals for WA series can be packing seal, centrifugal seal or mechanical seal.
The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications. There are many drive modes for option, such as V-belt, flexible coupling, gearbox, hydraulic coupler variable frequency, silicon controlled speed, etc. Among them, the flexible shaft coupling drive and V-belt feature of low cost and easy installation.
Mining Sand Mud Slurry Pump Notation
200WA-ST: 100WAJ-D:
200: Outlet diameter: mm 100: Outlet diameter: mm
WA: Pump type: chrome alloy lined WAJ: Pump type: rubber lined
ST: Frame plate type D: Frame plate type
Product Tags:
|
|
FGD Mining Sand Mud Slurry Pump with wear-resistant and anti-acid wet parts of A05, A49 Material Images
|
